PCBA production process

See what we review, what happens during production, and where your confirmation is needed. The manufacturing and test scope is agreed for your project.

See the factory floor
Inspection and testing follow the agreed project scope.

File review

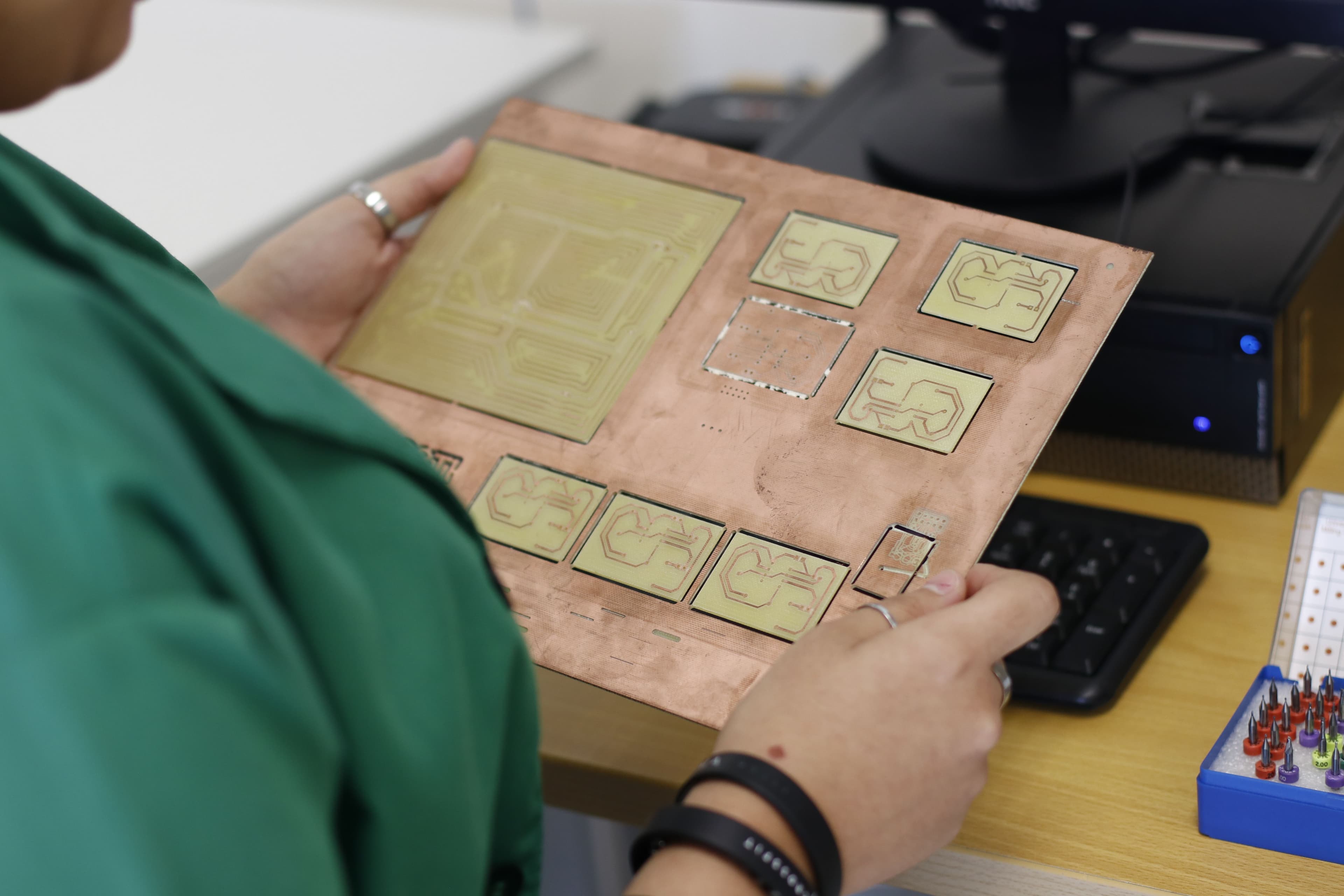

Production file review at Huitai PCB

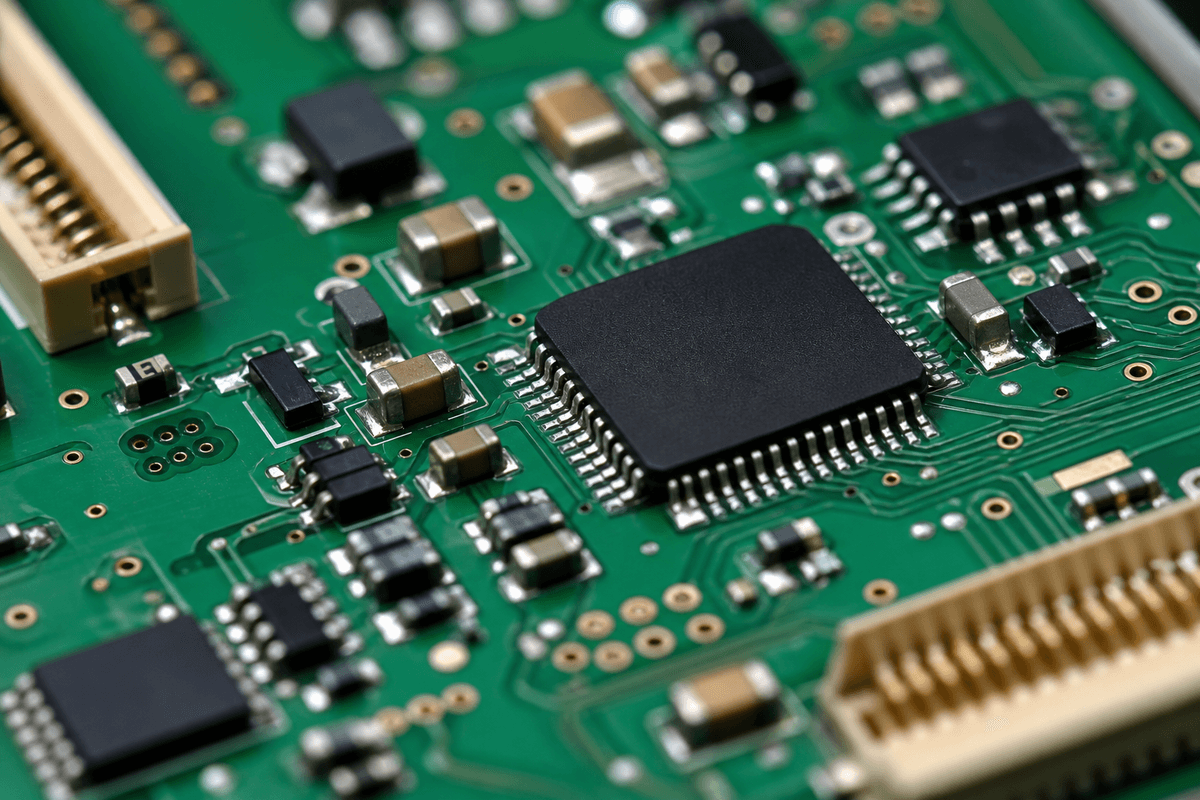

We review the files against the board revision, quantity and build requirements, and check component availability.

Customer provides
Gerber files, BOM and placement data, with the quantity and assembly or test requirements available for review.
Huitai does
Checks the supplied manufacturing information and part availability, then identifies gaps that need clarification.
Confirmation
The production revision and project scope are agreed before the build proceeds.
Check the quotation file list

BOM shortage & approval

Availability and customer approval / Process diagram

Only if a BOM part is unavailable. When all parts are available, the project moves straight from file review to PCB fabrication.

Customer provides
Any approved alternatives and component requirements that affect the choice of a substitute.
Huitai does
Reviews suitable substitutes for unavailable BOM parts and brings the proposed alternatives to you.
Confirmation
We wait for your approval of the proposed substitute before proceeding. An unavailable part is not replaced without that decision.
Read about component sourcing

PCB fabrication

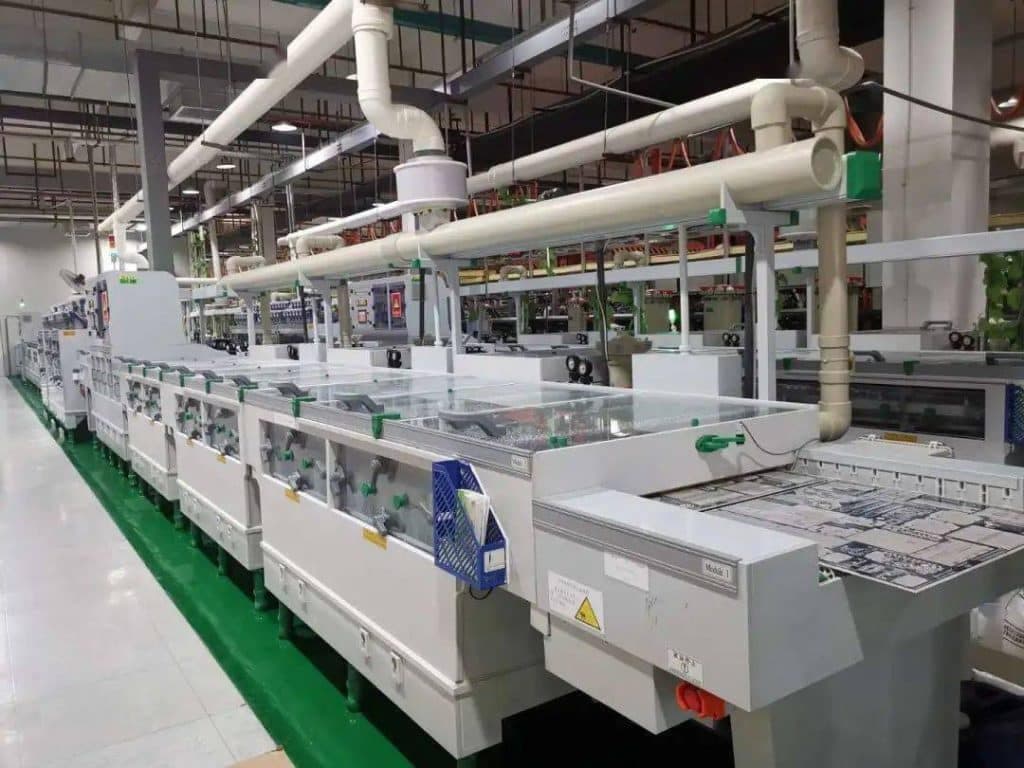

PCB processing equipment at Huitai PCB

Bare-board fabrication follows the agreed material, stack-up and board specification.

Customer provides
The confirmed Gerber revision and board specification for the project.
Huitai does
Produces the bare boards using the agreed manufacturing information.
Confirmation
The bare-board specification follows the reviewed project scope.
Read about fabrication

Component purchasing

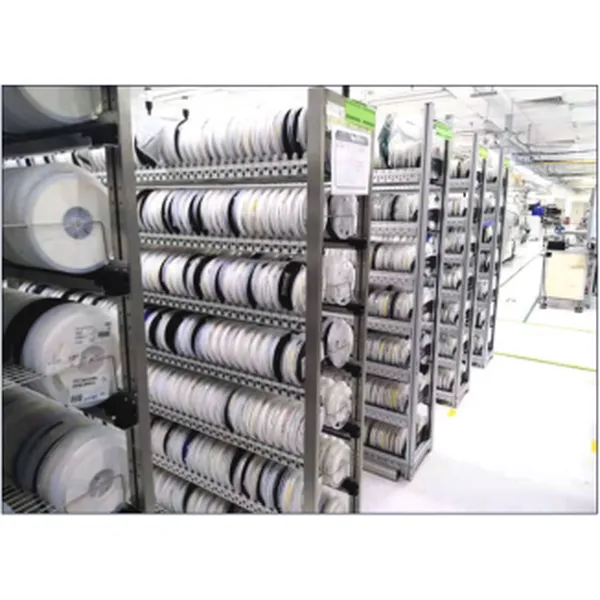

Component reel identification and material preparation

We order the parts on the confirmed BOM, including any substitutes you approved.

  • BOM match
  • Markings and package checks
  • Assembly material preparation
Customer provides
The confirmed BOM revision and decisions on any alternatives reviewed during the shortage step.
Huitai does
Purchases components against that confirmed BOM and its approved substitutes.
Confirmation
Purchasing follows the agreed parts list for this build.
Read about component sourcing

Assembly

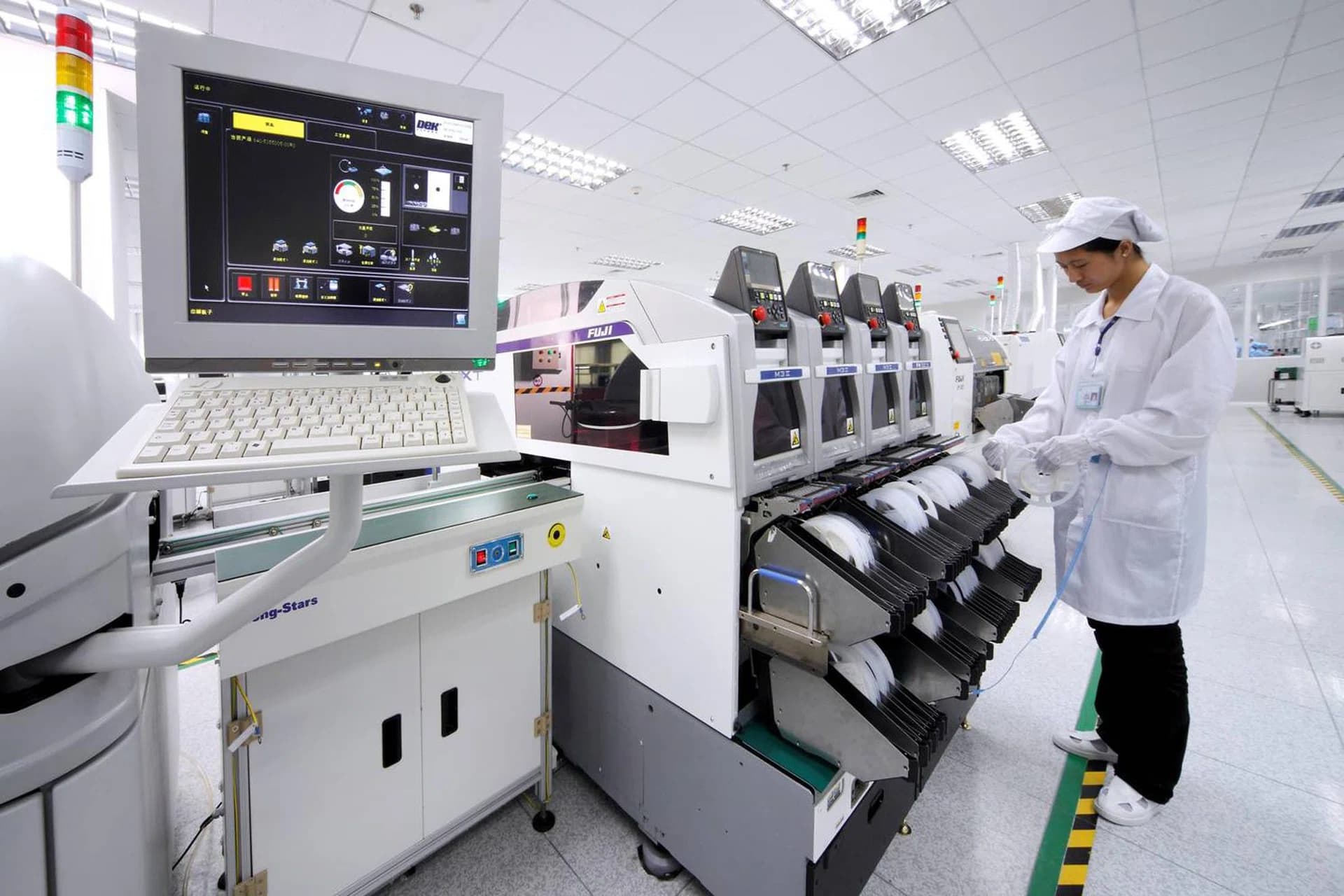

SMT component placement at Huitai PCB

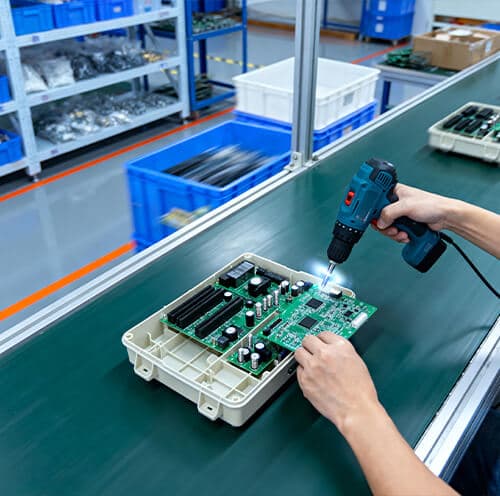

Assembly connects material preparation, SMT and the soldering methods selected for your board. Coating, potting and enclosure or box build can be added where the product requires them.

  1. Material preparation
  2. Solder paste printing
  3. SPI
  4. SMT placement
  5. Reflow soldering
  6. AOI review

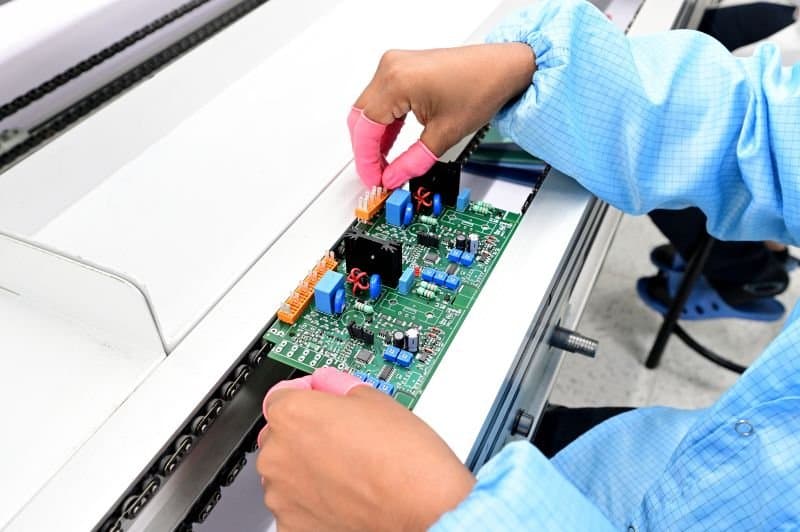

  7. Through-hole work, if required
Customer provides
Confirmed placement and assembly information, including relevant drawings or connector requirements.
Huitai does
Carries out the agreed assembly route, with manual, wave, selective or robotic soldering and press-fit assembly as applicable. Finishing and box-build steps follow the product requirements.
Confirmation
Assembly follows the reviewed board revision and build requirements.
See assembly photographs

Inspection & testing

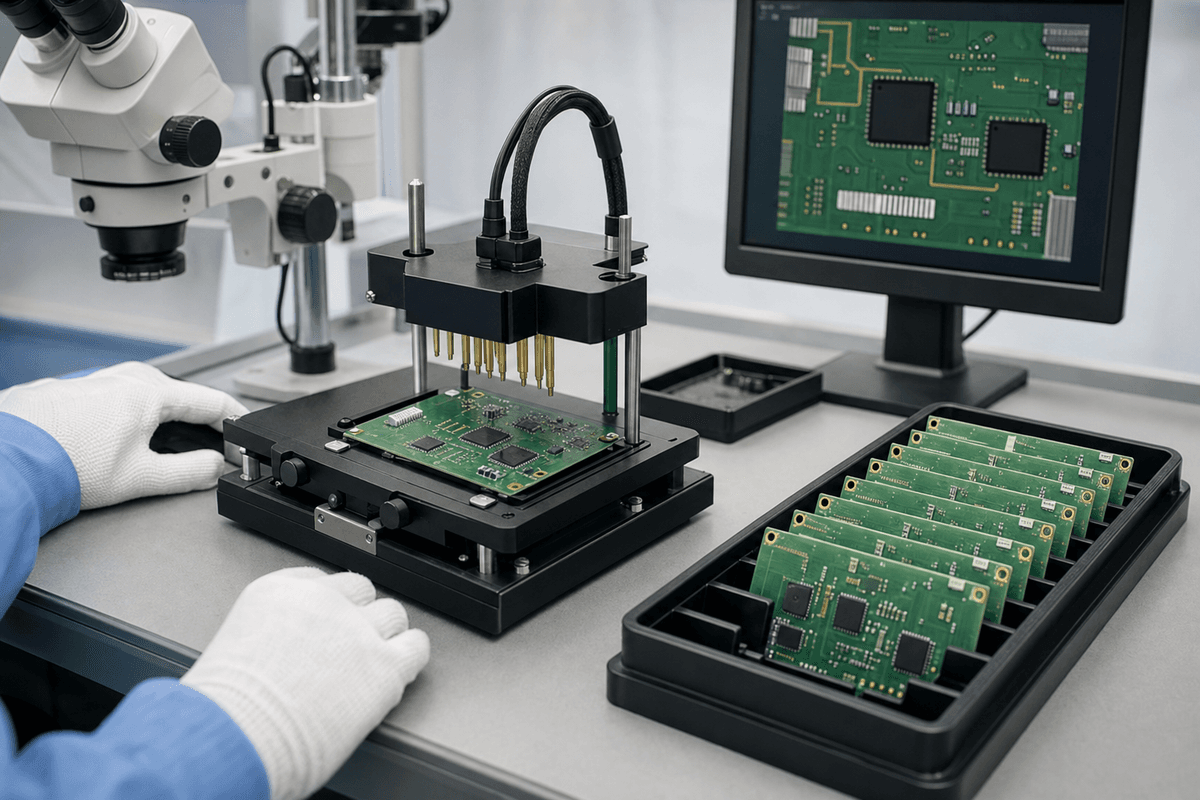

Production test workstations at Huitai PCB

We inspect and test the assemblies to the agreed project scope, from visual, AOI and X-ray inspection to ICT, programming, functional testing and burn-in. Environmental and electrical-safety tests are coordinated with partners when required.

  • Visual / microscope review
  • AOI / X-ray
  • ICT
  • Programming / serial-number writing

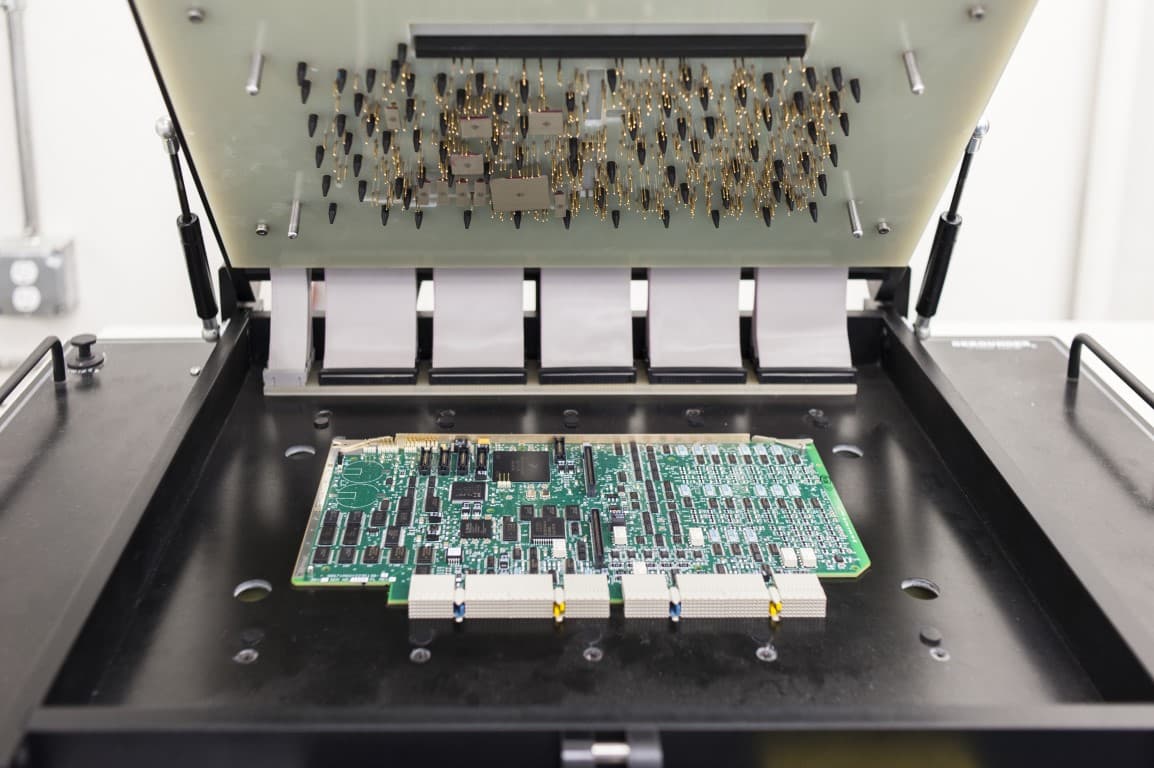

  • Functional testing
  • Burn-in
Customer provides
Programming and test instructions, acceptance criteria, and fixtures where required for the agreed checks.
Huitai does
Carries out the in-house inspection, programming and tests in the confirmed scope, and coordinates any agreed partner testing.
Confirmation
The checks use the agreed instructions and acceptance criteria; test coverage is specific to the build.
Read about inspection and testing

Packing & shipping

Protective bag packing before shipment

We pack the assemblies to the agreed handling requirements and coordinate domestic or export shipment with logistics partners.

  • ESD protection
  • Board protection
  • Quantity and labels
  • Shipment arrangements
Customer provides
The delivery destination and any packing or handling requirements for the order.
Huitai does
Packs and labels the assemblies, then coordinates shipment with logistics partners.
Confirmation
Packing and shipping arrangements follow the project requirements reviewed with you.
View representative assemblies

These are the order stages. Assembly methods, finishing, product assembly and test coverage are selected during project review. Browse the available manufacturing capabilities
