PCBA manufacturing services

Board fabrication, components and assembly, brought together around your production files.

From prototype to repeat production. Add protective finishing or box build when your product needs it.

SMT component placement / Huitai PCB

Choose your project stage

Review the service that fits your next build.

What we can include in your build

Select a service to see its scope and the details we need to confirm.

PCB fabrication

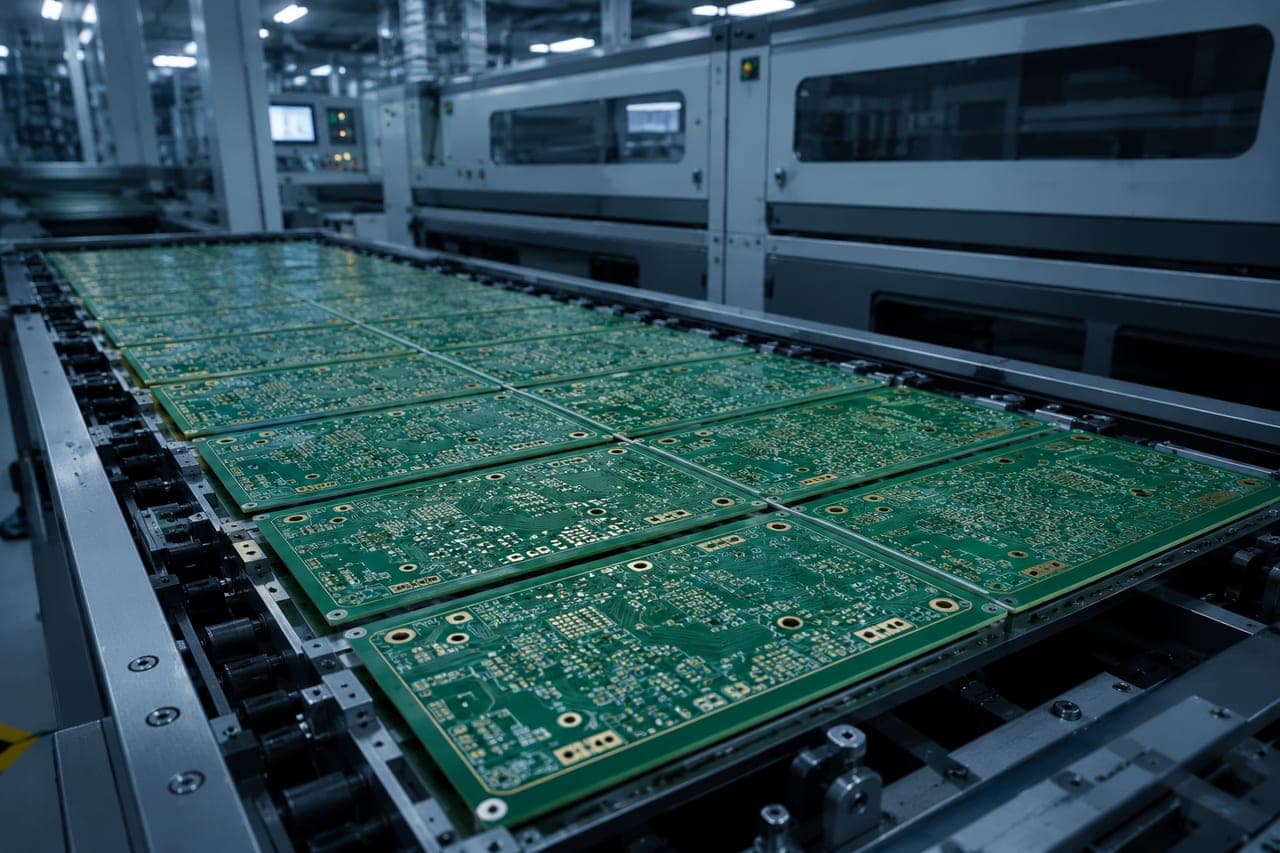

PCB panels under processing heads inside manufacturing equipment
PCB processing equipment

PCB fabrication follows your approved board specification, with materials, stack-up, surface finish and assembly requirements reviewed before production.

PCB fabrication and assembly details

Component sourcing

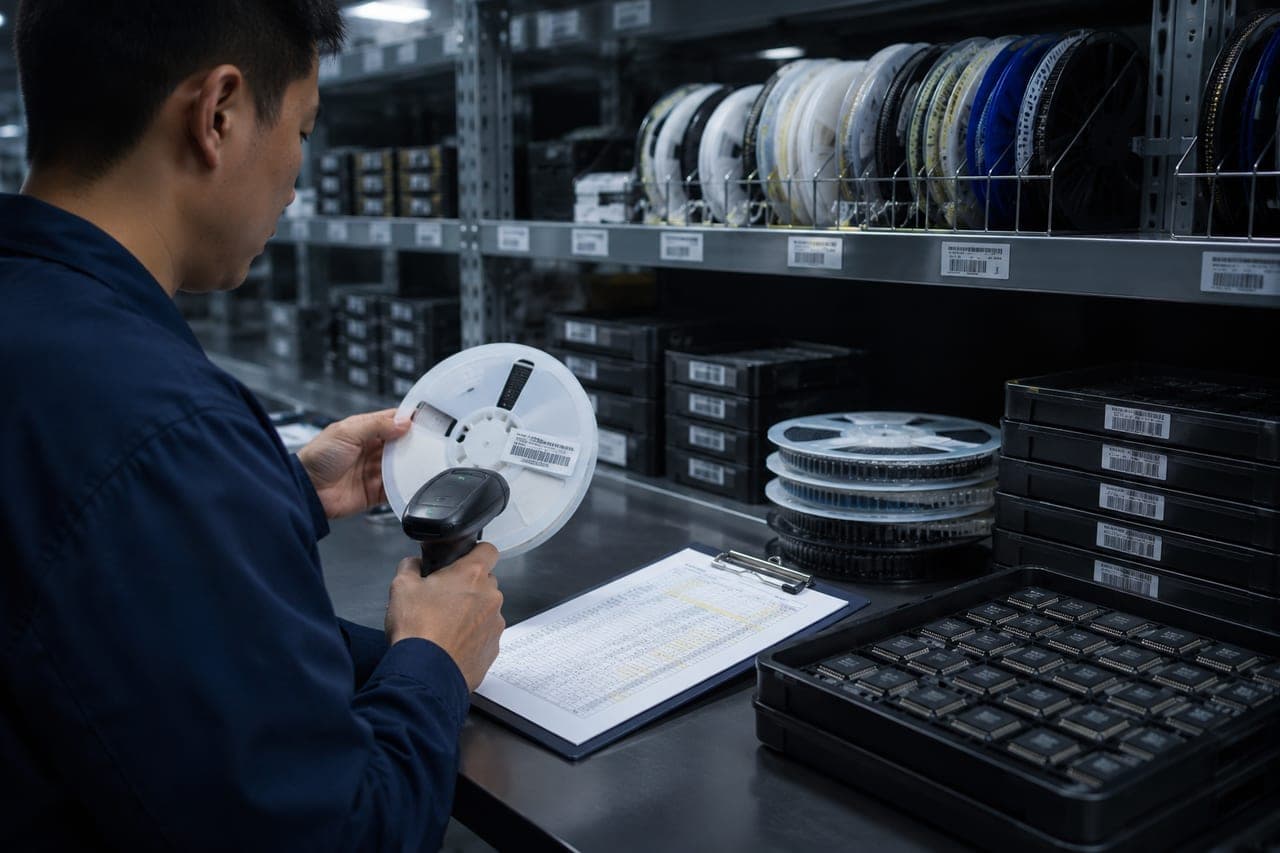

An operator scanning a component reel label beside component storage
Component identification and material preparation

We check BOM availability and lifecycle risks. If a part is unavailable, we review alternatives with you and wait for your approval before proceeding.

BOM sourcing details

SMT and through-hole assembly

An operator inserting a terminal connector into a circuit-board assembly
Through-hole component insertion

Placement, through-hole work and connector soldering follow the agreed assembly scope, revision and build requirements.

PCB assembly detailsView factory photographs

Inspection, programming and testing

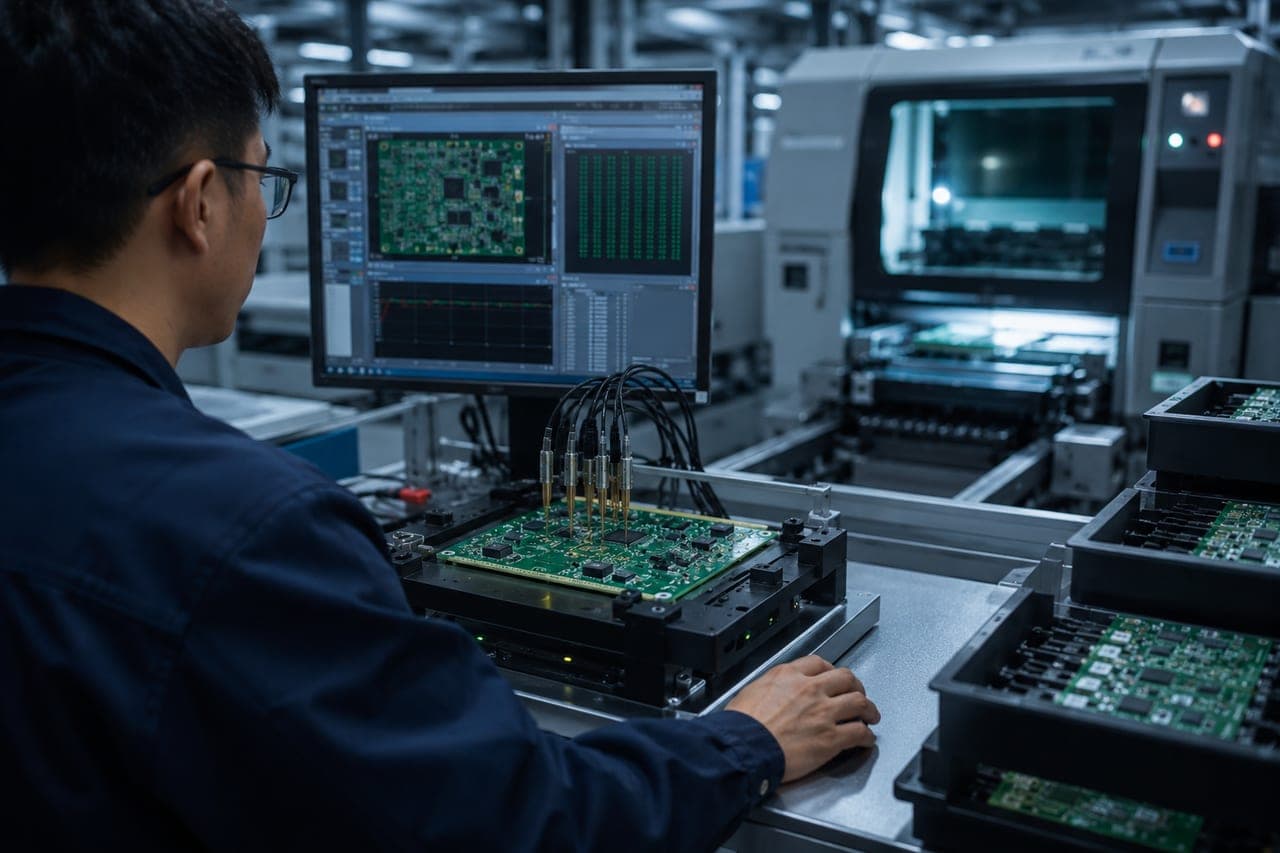

An operator reviewing component inspection images at the AOI workstation
AOI inspection and operator review

Inspection and test steps are agreed for the project. Programming and functional testing need your instructions, fixtures where required, and acceptance criteria.

Testing and quality-control details

Processes available for your build

Explore the manufacturing options. Partner services are identified so you can see how the work is handled.

PCB fabricationBoard construction, materials and finishing
  • Single- and double-sided FR-4 PCBsIn-house
  • Multilayer FR-4 PCBsIn-house
  • Flexible circuits (FPC)In-house
  • Rigid-flex PCBsIn-house
  • HDI, blind and buried viasIn-house
  • Heavy-copper PCBsIn-house
  • Controlled-impedance PCBsIn-house
  • PCB surface finishingIn-house
SMT assemblyPlacement, package handling and rework
  • Single-sided SMT assemblyIn-house
  • Double-sided SMT assemblyIn-house
  • QFN and DFN packagesIn-house
  • BGA placementIn-house
  • CSP and WLCSP packagesIn-house
  • Fine-pitch ICs and connectorsIn-house
  • Small passive component placementIn-house
  • BGA and precision component reworkIn-house
  • Moisture-sensitive device handling and bakingIn-house
Through-hole and solderingInsertion, soldering and press-fit assembly
  • Through-hole component insertionIn-house
  • Hand soldering and touch-upIn-house
  • Wave solderingIn-house
  • Selective solderingIn-house
  • Press-fit connector assemblyIn-house
  • Automated and robotic solderingIn-house
Incoming and process inspectionChecks from received materials to assembled boards
  • Incoming quality inspection (IQC)In-house
  • First article inspection (FAI)In-house
  • Solder paste inspection (SPI)In-house
  • Automated optical inspection (AOI)In-house
  • X-ray inspectionIn-house
  • Microscope and visual reviewIn-house
  • Material lot and serial-number traceabilityIn-house
Programming and testingElectrical, functional and product-specific test scope
  • In-circuit testing (ICT)In-house
  • Functional testing (FCT)In-house
  • Firmware programmingIn-house
  • Serial-number and MAC address programmingIn-house
  • Burn-in and powered operation testingIn-house
  • High / low temperature and environmental testingCoordinated with partners
  • Dielectric withstand, insulation and grounding testsCoordinated with partners

Test coverage, firmware, fixtures, operating conditions and acceptance criteria are agreed for the project.

Coating, potting and cleaningProtective finishing to the product requirements
  • Conformal coatingIn-house
  • Potting and encapsulationIn-house
  • Adhesive dispensing and component securingIn-house
  • PCBA cleaningIn-house
  • Board and component drying / bakingIn-house
Box build and cable assembliesBoard installation, product assembly and partner coordination
  • PCBA installation into enclosuresIn-house
  • Box build and product assemblyIn-house
  • System integration and finished-product testingIn-house
  • Wire cutting, stripping and terminal crimpingCoordinated with partners
  • Wire and cable soldering to boardsCoordinated with partners
  • Harness continuity and wiring checksCoordinated with partners
  • Heatsink and mechanical part installationCoordinated with partners
Production engineering and sourcingFile review, materials and tooling preparation
  • Design for manufacturing / assembly reviewIn-house
  • BOM availability and alternative-part reviewIn-house
  • Full BOM component sourcingIn-house
  • Consigned and mixed-supply material handlingIn-house
  • Stencil, assembly tooling and test-fixture supportIn-house

Production reviews use your existing design. Any proposed component substitutions require your approval.

Packing and shippingProduct protection, identification and delivery coordination
  • ESD protective packagingIn-house
  • Product labels and lot identificationIn-house
  • Customer-specified packing and protectionIn-house
  • Domestic and export shipment coordinationCoordinated with partners

Files for a PCBA quote

Send the files you have. We review the details, flag gaps and confirm the sourcing, assembly and test requirements for your existing design.

Engineering support for production
  • Gerber files and board revision

    Include board drawings or fabrication requirements where available.

  • BOM and placement data

    Include the component list and assembly reference information.

  • Quantity and assembly requirements

    Tell us the required build quantity and any assembly constraints.

  • Programming and test requirements

    Provide instructions, acceptance criteria and fixture information where needed.

See how we handle a production order

Follow the process from file review and any shortage approvals through to packing and shipment.

View the production process

Prepare your PCBA enquiry

Use this optional checklist to prepare your files. You can request a quote with the information you have.

Which files have you prepared?

0 of 5 items prepared

You can send the files you have. We’ll identify any gaps with you.

Go to the quote formRead the full file checklist
